Christmas Sale Ship from US Autel G-Box 3 Key Programming Adapter For Mercedes And BMW Vehicles, All Key Lost Adapter IMMO Tool Works With MaxiIM IM508(S) + XP400 Pro, IM608 PRO II, IM608S II, Upgraded Of G-Box2

The Autel MaxiIM G-BOX3 is an adapter designed for integration with Autel’s MaxiIM IM608/IM608 Pro/IM608S II and IM508/IM508S tablets (requires XP400 Pro programmer). It streamlines key programming for Mercedes DAS3 CAN EIS/EXS vehicles in all keys lost scenarios. Additionally, it enables DME/DDE ISN reading and writing in boot mode for applicable BMW models, with bench method support included. Notably, all keys lost password calculations are optimized for speed, achieving up to 8x faster processing.

G-Box3 is an upgraded version of G-Box2, with better performance and speed

The Autel G-Box3 enhances all keys lost password calculations, making them approximately 8x faster. It is specifically designed for scenarios where all keys of Mercedes-Benz DAS3 CAN EIS/EZS are lost. This unit significantly reduces the time required to read ECU data for W204 and W207 models to 1/8 of the original duration,  improving ECU reading speed.

Autel G-Box3 Powerful Function

1. Mercedes-Benz All Keys Lost, Faster Password Calculation.

• 8x Faster Password Calculation For EIS W172, W204, W207;
• 4x Faster Password Calculation For EIS W209, W211, Etc.

2. Mercedes-Benz all Keys Lost, No More Repeated Insertions And Removals Of IR Simulator

W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(Partial), W202(K)/ W208(K)/ W210(K), W203(K)/ W463(K)

3.Mercedes-Benz all Keys Lost, Direct programming on the vehicle without taking out the EIS to work on the bench, for all EIS models except

EIS W164/-2008, W251/-2008, W221, W202(K)/W208(K)/W210(K), And W203(K)/W463(K),

4.BMW DME/DDE ISN Reading and Writing In Boot Mode

• 23 ECU Bosch models including MEVD / EDC17
• 6 ECU Siemens Models, including MSD / MSV motors

5.Engine&ECU Reading/Writing for BOSCH MD1/MG1(VAG,BMW,PSA,OPEL,etc)

How to use Autel G-Box3?

A. OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

(This method is suitable for Mercedes-Benz W204 , W207, W216 and W164 EISs after the year 2009)

Connection Steps:

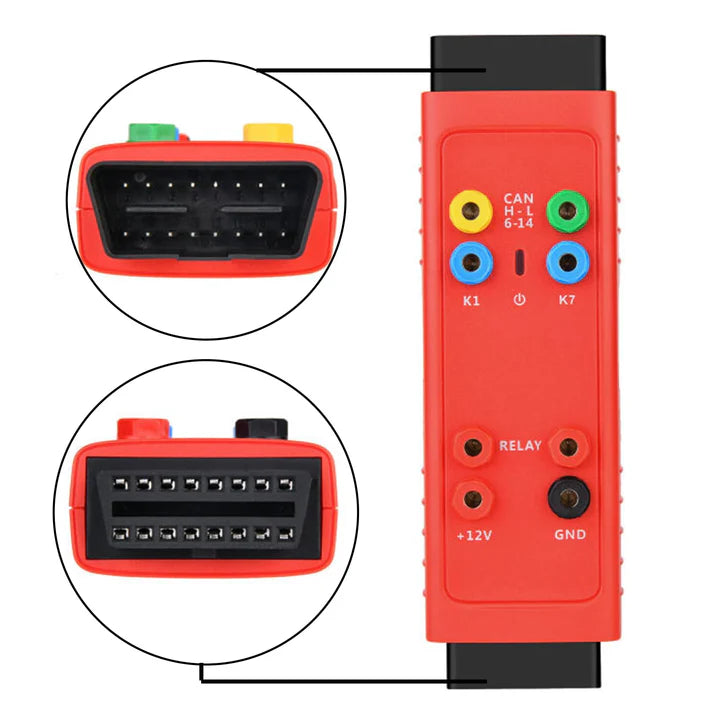

1. Connect the G-Box to vehicles's OBDII

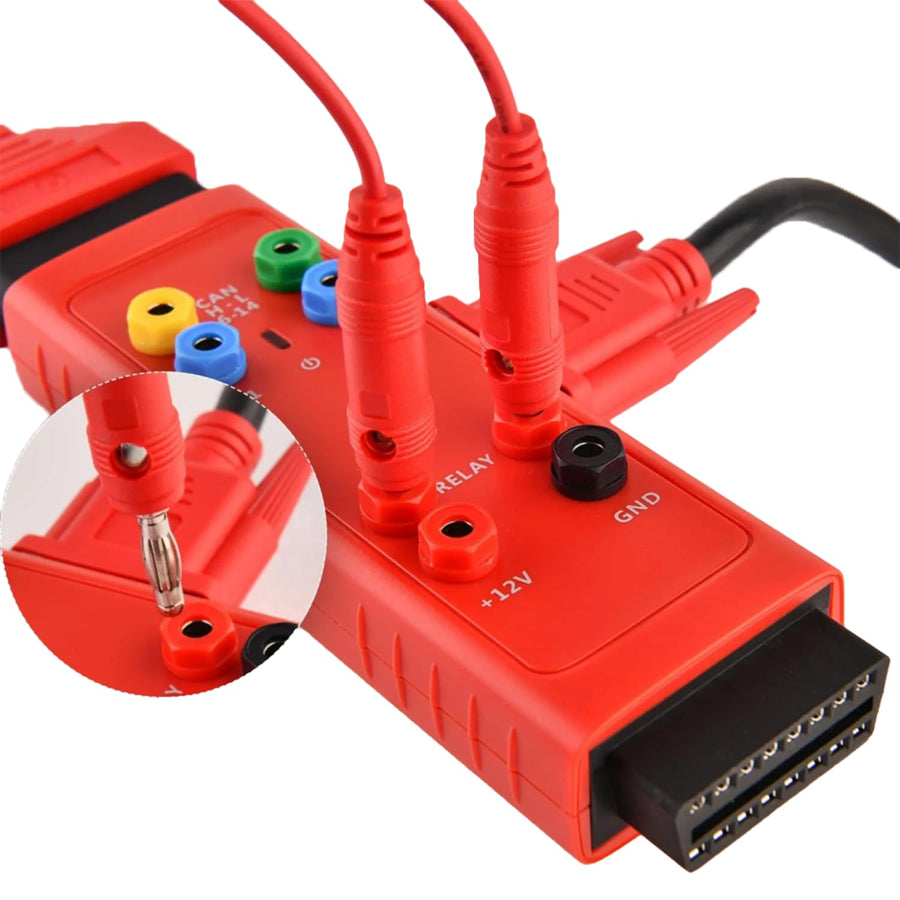

2. Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
3. When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
4. Connect the G-Box to the Autel Diagnostic Tablet

B. Desktop Operation When All Keys of Mercedes-Benz Vehicle are Lost

(This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet.)

Connection Steps:

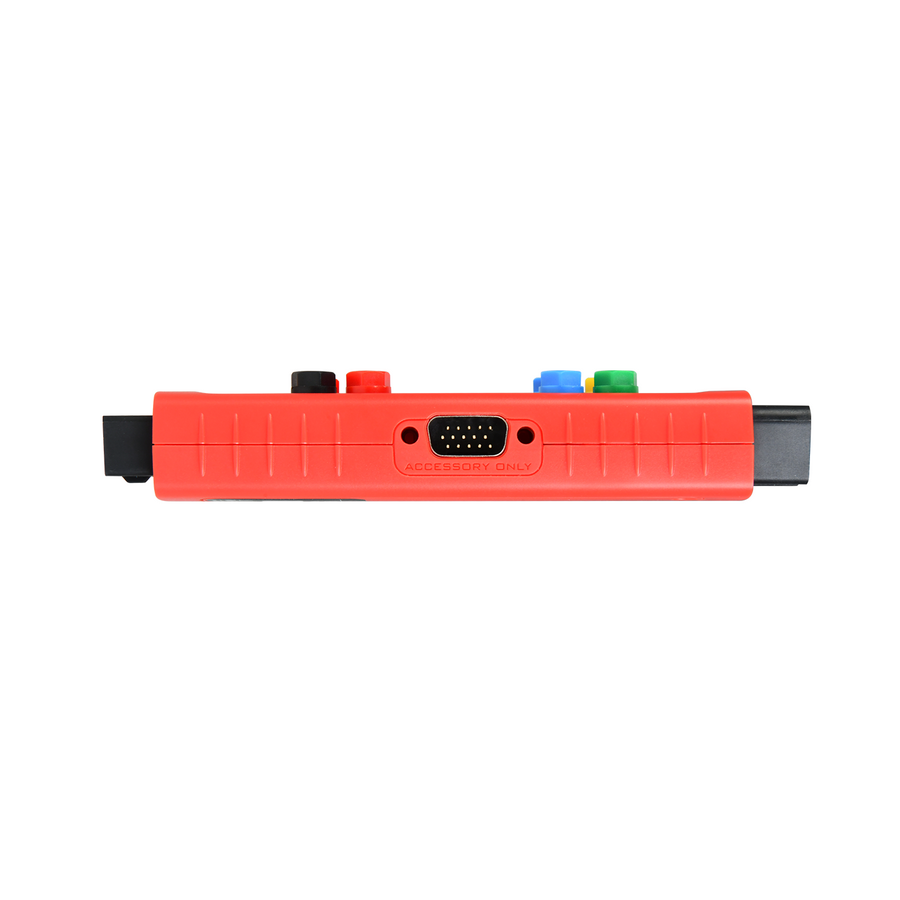

1. Connect the G-Box to the Mercedes-Benz EIS using the supplied DB15 Cable
2. Connect to the DC port of G-Box using a power adapter (DV 12V)
3. Connect the G-Box to the Autel Diagnostic Tablet

Autel G-box2 Package List

1PC x Autel G-BOX3

1PC x DB15 Cable

1PC x K-Line Cable

1PC x Fuse Cable

2PCs x Fuse (5A)

2PCs x Clamp Cable

1PC x OBDII Extension Cable

1PC x Quick Reference Guide

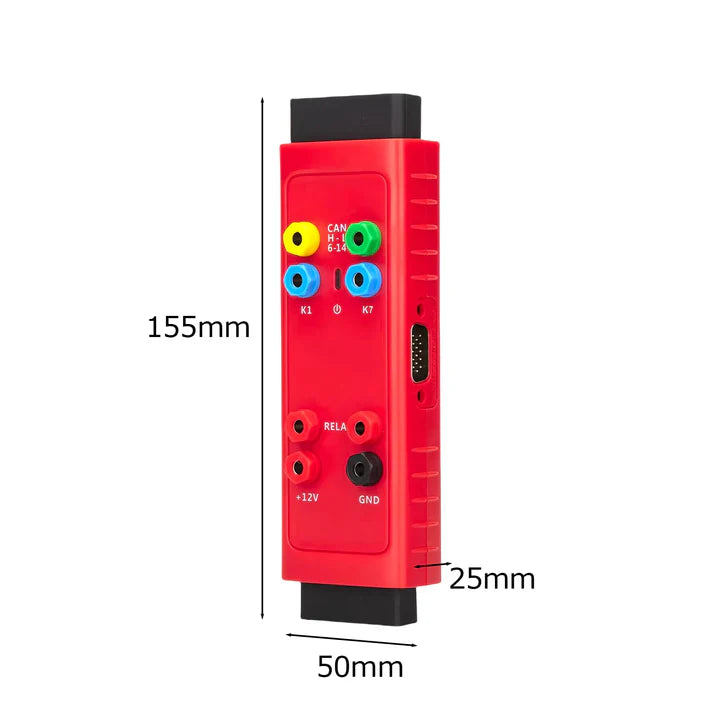

Autel G-Box3 Specifications:
