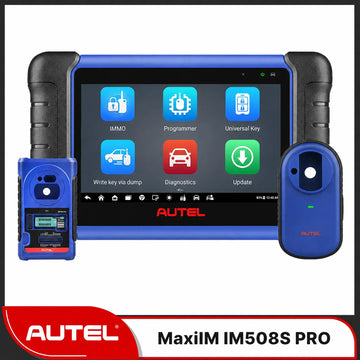

![[2-Year Update] 2026 Autel MaxiIM IM508S PRO Both Key Fob Programmer & Automotive OE-Level Diagnostics Scan Tool with 40+ Services, Same IMMO Power as IM608PRO Il, 2026 Newest Version](http://www.autelkeytools.com/cdn/shop/files/MaxiIM_IM508S_PRO_main_720x_720x_6e16fafc-8bad-4736-ba32-74f53a706715_{width}x.webp?v=1764665518)

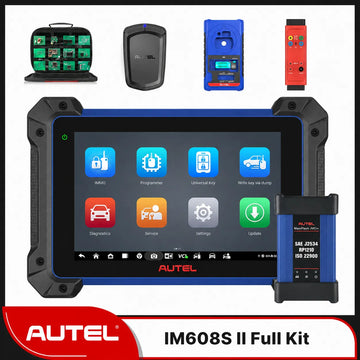

![[2-Year Update] 2026 Autel MaxiIM IM608S II Key Fob Programming Full Kit, Top IMMO, Same as IM608 PRO II, Support All Key Lost](http://www.autelkeytools.com/cdn/shop/files/1_4_-_-jpg_{width}x.webp?v=1768467420)
28%OFF

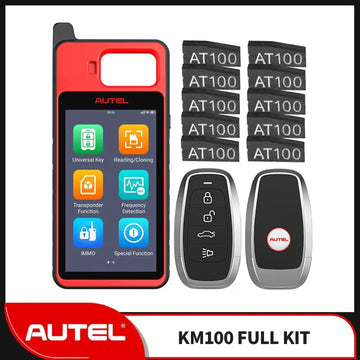

Autel MaxiIM KM100
2026 Autel MaxiIM KM100 Key Fob Programming Immobilizer Tool, Same as KM100E/KM100X, 60S Key Generation and IMMO Learning, Chip Read/Write /Cloning, Autel's #1 Best Selling Key ProgrammerMust-Have Tool for New Learners - KM100
- Key Generation in 60 Seconds
- Program Keys for Vehicles 1996-2026
- Key Learning via OBD for 90% Vehicles
- Free Lifetime Online Update
- Frequency Detection
- Chip Read/Write/Clone
- Support AutoVIN, Step-by-Step Guidance
- Multi-Language Supported, NO IP Limitation
- Large 4950mAh Battery and Portable Design for Working Anytime, Anywhere
Description
#1 Best Seller, Most Trusted by Locksmiths, Best Cost-Performance
Autel MaxiIM KM100
Note: KM100=KM100X=KM100E
Note: After receiving the device, you can send sales@autelkeytools.com the SN (12 digits), and we will help you switch languages for free.
Autel KM100(X) key programmer scanner comes with 2pcs blank Autel Smart Keys, compatible with 868m/915m and 315m/434m frequency, easy to get spare Keys. It supports IMMO learning via OBD for over 90% of vehicle models and features 60-second key generation. You can use the KM100 as a replacement for the IM508 and IM608 on many vehicles to program keys. With extensive coverage for 700+ models, including BMW, Volkswagen, Toyota, Honda, and General Motors.
🔑 Key Reasons to Choose KM100
- 60-Second Key Generation - Create a new key in just 60 seconds - 50% faster than traditional tools.
- No IP Limitation - Works anywhere, no regional restrictions.
- Lifetime Free Updates - Always cover the latest models at no extra cost.
-
Supports 700+ Vehicle Models - Covers most versions and regional variants.
-
Auto VIN Detection - Automatically reads vehicle VIN, make, model, and year — simplifies IMMO system scan and DTC reading.
- Chip Read/Write/Cloning, Transponder Editing Supporting 20 Categories, Generation/Conversion, Simulation for Emergency Use
-
Step-by-Step Guidance - Clear, intuitive instructions make it easy for beginners to use.
-
IMMO Key Learning via OBD - Covers 90%+ of models including BMW, VW, Toyota, Honda, and GM.
-
Built-in APB112($259) Chip Simulator - Reads ignition coil data, detects coil issues, and decodes transponder info from key chips.
-
Real-World Tested - Field-tested to ensure stable performance and high protocol accuracy.
- Multi-Language System - Supports most major languages worldwide.
🔥HOT & SPECIAL FUNCTIONS
- Key Unlocking: Refresh used smart keys for new cars by updating firmware via cable, compatible with 36 vehicle makes.
- Toyota Smart Unlocking: MaxiIM KM100 Car Key Programming Tool features a specialized module that streamlines the Toyota Smart Unlock process, making it more convenient and user-friendly.
- Frequency Detection: Detects smart key frequencies on many models, displaying results in text and graphs.
- IMMO Data Processing: Reads IMMO data from the vehicle ECU, calculates passwords, and programs transponders to start the vehicle—enabling new key generation.
- Button Adjustment: Customize Autel universal key buttons, including combination functions.
- Universal Key Information Detection: Reads key details such as serial number, key ID, and IMMO version via key slot.
- Ignition Coil Detection: Uses low-frequency collector to detect transponder type from ignition or emergency start coils, results shown on-screen.
- Scan VIN/License: One-touch vehicle identification to quickly scan IMMO ECUs and perform diagnostics.
- Dual Frequency Compatibility: Compatible with 315/433 MHz and 868/915 MHz frequencies.
KM100 Vehicle Compatibility
- AutoVin vehicle identification to ensure accuracy
- Simple Operation, Guided User Instructions, Easy To Use
- Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
- Supporting 8 Key Series And 37 Models
- Covering The Top 100 Selling Models In North America For The Last 10 Years
KM100 - 60s Key Generation
Note: Both OEM and Autel universal keys support this function, but only Autel universal keys can achieve key generation within 60 seconds.
The Autel MaxiIM KM100(X) programs Autel IKEY as a smart key replacement for many vehicle models across the U.S., Europe, and Asia.
- Fast Key Generation - 50% faster than before.
- Step-by-Step Guide Included - Easy key programming
- Simple Operation - One-click IMMO learning immediately
Advanced IMMO Functions
- Key Learning via OBD for 90% Vehicles
- Generate Simulator Key (KM100 as Emergency Key)
- Smart Remote Learning / Key Learning
- IMMO Data Backup / Restore
- Key Generation / Program a Smart Key
- All Key Lost / Add a Key
- Read PIN / Password Calculation
- IMMO ECU Reset / Adaptation / Refresh / Coding
KM100 - Transponder Functions
- Comprehensive Transponder Reading
Identify chip type, IMMO system, transponder ID, lock status, and coding mode with precision.
- Advanced Data Editing
Modify and customize transponder information to meet specific programming needs.
- Transponder Generation by Vehicle Model
Generate new transponders by selecting the correct model and chip type — ready for use upon successful creation.
- Smart Transponder Simulation
Simulate key chips using supported IMMO protocols (ID46, ID47, ID48, ID49, ID4A, ID8A) — ideal for emergency starts or such.
- Ford Transponder Conversion
Supports seamless two-way conversion between Ford ID63 and ID83 transponders.
Universally Applicable Autel IKEY
MaxiIM KM100 Comparison Chart
Autel MaxiIM KM100 Packing List
- 1x KM100 Main Unit
- 1x MaxiVCI V200
- 1x Power Adapter
- 1x Type-C USB Cable
- 2x Universal Smart Key
- 1x Custom Mini USB Cable(for key programming)
- 1x USB-C to USB-C Cable
- 1x Quick Reference
- 1x Package List
- 1x Carring Case(330*262*100mm)
Specification
Autel MaxiIM KM100 Spec
| Dimensions (WxHxD) | 200mm(7.9") x 89 mm (3.5") x 22mm (0.87") |
| Weight | 352.7g (0.8 lb) |
| Display | 5.5-inch screen with 1280 x 720 resolution |
| Processor | Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
| Memory | 2 GB RAM / 64GB on-board memory |
| Camera | 8 Megapixels |
| Sensor | Ambient light sensor |
| Audio Input / Output | MIC: supported Speaker: supported |
| Connection | Wi-Fi Bluetooth 5.0 USB 2.0 type C |
| Battery | 4950mAh lithium-polymer battery |
| Battery Charging Input | 5 V/2 A |
| Operating Temp. | -10 to 50°C (14 to 122°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Updates | Lifetime Free Updates |
FAQS
Q: How can I find out if the KM100 supports specific vehicle?
A: You can check the official compatibility by visiting our blog post: Autel MaxiIM KM100 Vehicle Supported List (2026 Edition).
Q: How to activate the language I want ?
A: Offer us serial number when you get it, we will switch the language for you. (Send S/N to sales@autelkeytools.com to switch language.)
Q: How long will the upgrade be available for free?
A: KM100 update is free for the lifetime of the product.
Q: What is the difference between Autel KM100 and KM100X and KM100E?
A: The only difference is the name; all models are exactly the same in terms of hardware, features, and performance.
Q: How do I connect the Autel MaxiIM KM100 to my vehicle?
A: 1)Make sure the ignition switch is turned to the ON position.
2)Check that the OBD-II cable is securely connected and not damaged in any way.
In addition, you may need to check that the fuse associated with the vehicle's diagnostic system is not blown.
Q: Can I program a new key for my car using the Autel MaxiIM KM100?
A: Yes, the Autel MaxiIM KM100 can program a new key for your car. However, please note that the exact procedure may vary depending on the make and model of the vehicle. It is recommended to contact us and provide the VIN and vehicle make and model so that we can tell you the functions it supports.
