Autel MaxiIM IM608PROKPA Advanced IMMO & Key Programming Bundle included XP400Pro and KPA expanded Accessories Packag

MaxiIM IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. Autel IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the Autel IM608 Pro include the ability to perform active test, coding and adaptations.

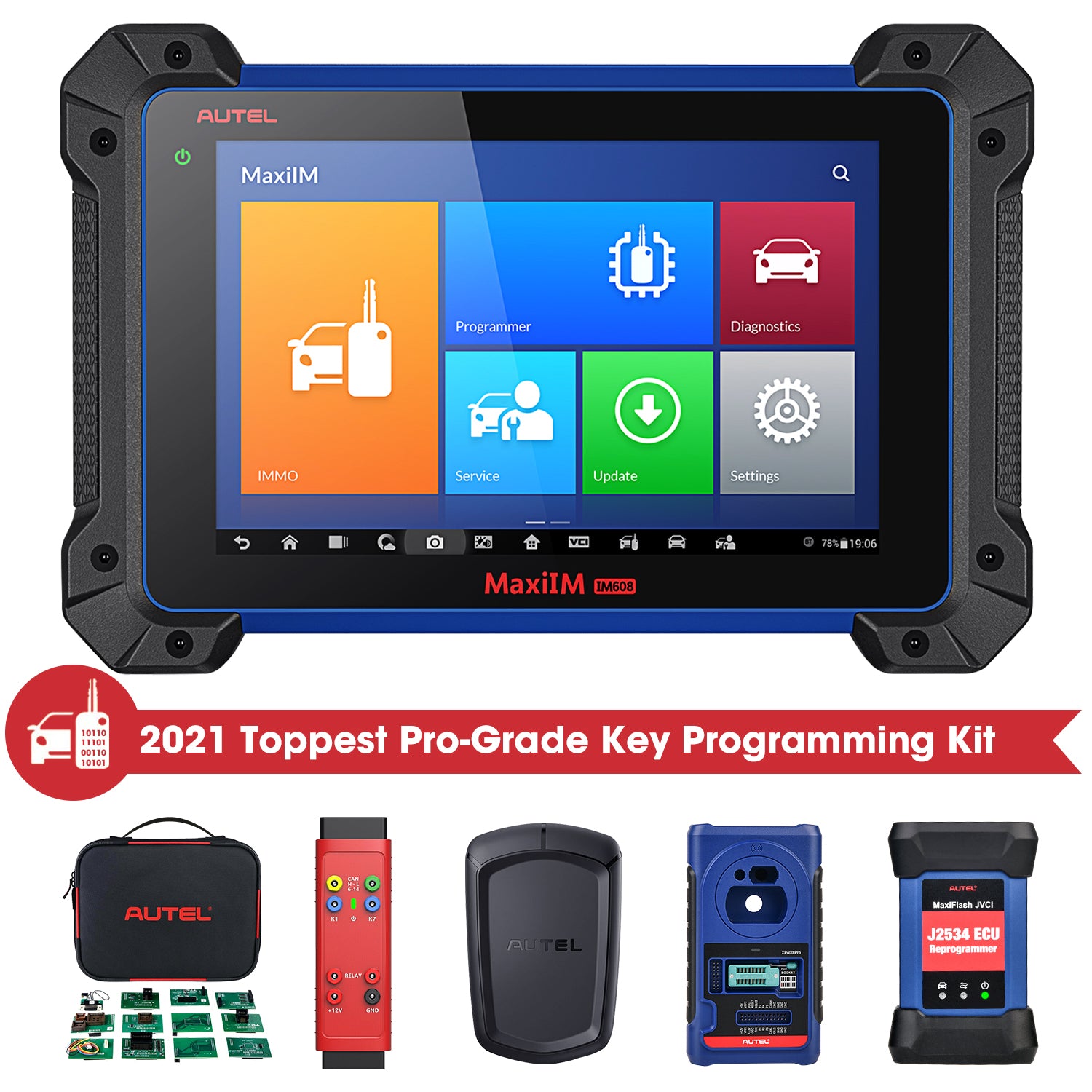

Autel Maxiim IM608PROKPA is composed of IM608PRO+ XP400PRO + IMKPA.

ADVANCED IMMO & KEY PROGRAMMING BUNDLE

MaxiIM IM608PROKPA Main Features

• Advanced IMMO & Key Programming Bundle, Upgraded Version of IM608 Pro
• Program IMMO & Keys for U.S., Asian and European Vehicles
• Includes MaxiIM IM608 Pro 10.1-inch Touchscreen Android Tablet, Advanced XP400 Pro, MaxiFlash JVCI & Key Programmer Adapter Kit
• 1-Year Software Updates and Warranty
• Comes with XP400 Pro which adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading
• Comes with IMKPA Accessories Which adds BMW EWS3 key learning, Benz NEC key learning and Benz ESL_W209 read/write/erase
• Existing Autel IM508/ IM608/ IM608 Pro Users Can Upgrade To IM608PROKPA by Purchasing XP400 Pro Programmer and IMKPA Kit

IM608PRO

Autel IM608 Pro is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet

XP400PRO - Advanced All-in-One Key Programmer

XP400 Pro and XP400 have the same functions, but XP400 PRO has many more adapter chips

• Expanded EEPROM functions for more component access
• 170+ types Odometer component reading functions
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types
• Compatible with IM508 and IM608

If you want to know more about it, please click here-->XP400 Pro

G-BOX2 Features

• Faster password calculation for Benz All Key Lost
• 8X times faster password calculation for W172, W204, W207
• 4X times faster password calculation for W209, W211
• No more repeated insertions and removals of IR simulator for 10 types of EIS
• Passport reading for 9 type EIS when all keys lost on vehicle
• BMW DME/DDE ISN reading for 20 types (EDC17, MEVD17, MSV90, MSD87, etc)
• VAG ECM immo data reading & data synchronization for 18 types (MQB EDC17, MED17, etc)
• XP400 may be required for certain functions

If you want to know more about it, please click here-->G-Box2

APB112Features

• Smart key emulator
• Compatible with IM608, IM508 & MX808IM
• Compatible with XP400 for 4D transponder functions
• 46, 4D data collection
• Smart key password calculation (Hyundai/Kia 46)
• 46 chip simulation
• Toyota 4D (94/D4, 98) smart key emulation
• Toyota H (88/A8, A9, 39) smart key emulation
• Collects data from ignition coil
• Identify ignition coil troubles
• Decode vehicle key chip data
• Simulate vehicle key chip (ex - 4D chip)
• Must be used with an Autel diagnostic tool
• Toyota/Lexus smart key all key lost
• Chip decoding (Hyundai 46)

If you want to know more about it, please click here-->APB112

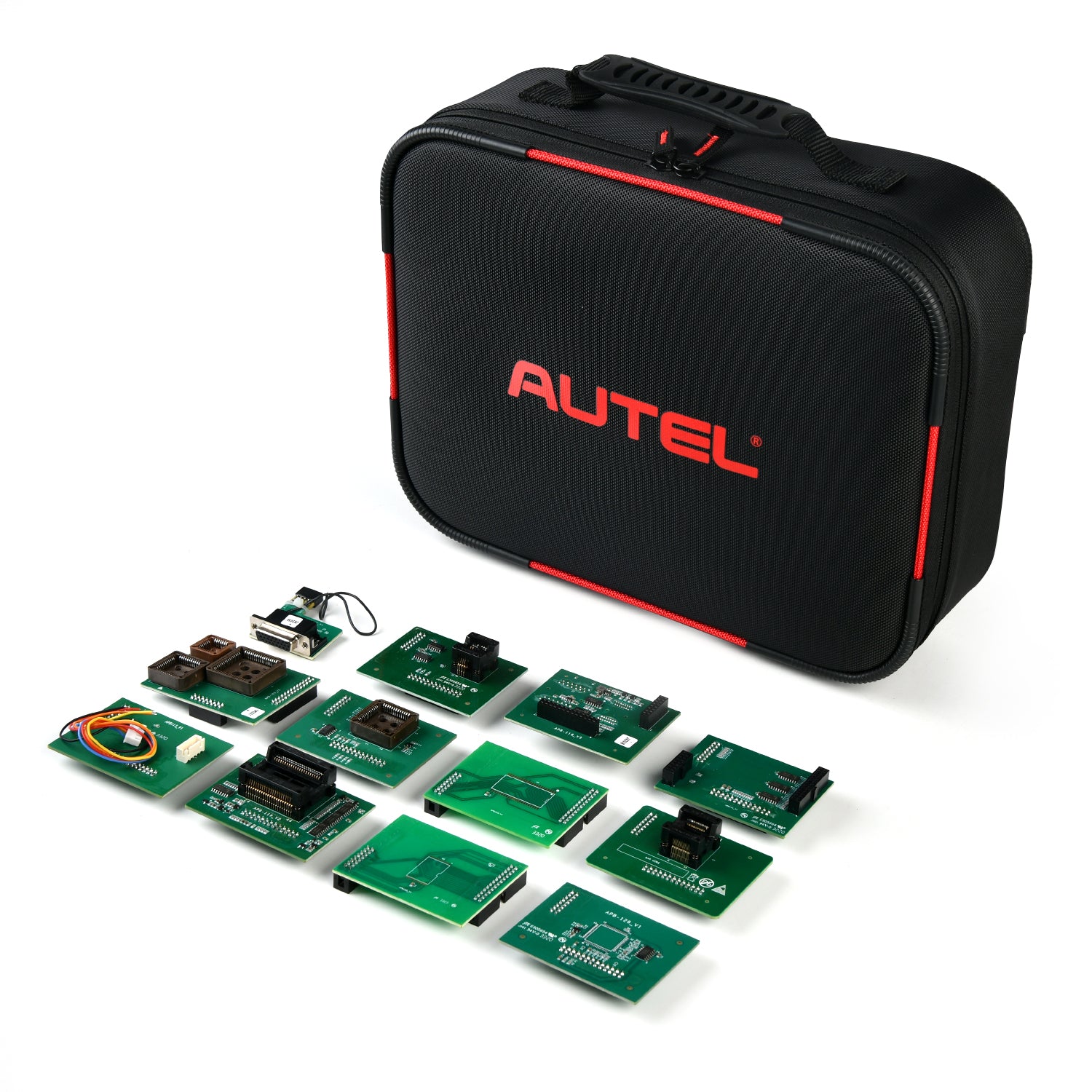

IMKPA - Expanded Key Programming Accessories

Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer.

• Supports over 10 key unlock types
• BMW EWS3 key learning
• Benz NEC key learning
• Benz ESL_W209 read/write/erase
• Compatible with IM508 and IM608 (XP400Pro required)

If you want to know more about it, please click here-->AUTEL IMKPA

Best Programming And Diagnostic Tools

Autel IM608 Pro is the latest version of 2021 advanced secret key programming tool, including anti-theft lock system, compared to IM508, IM608 Pro programming is more advanced, With powerful IMMO and programming capabilities, OE level diagnostics and advanced service functions combined into one tool.

The IMMO application provides intelligent mode and expert mode to instruct technicians to perform IMMO-related functions, including key learning, remote control learning, remote control adding,etc.

• Smart Mode – step-by-step through a series of functions.
• Expert Mode – select a specific function.

OE-Level All System Diagnostic + Maintenance Services

As a professional diagnostic scanner,Autel IM608 Pro can perform a comprehensive inspection of your vehicle's system, but also provides 23+ maintenance service functions, providing you quick access to a variety of vehicle system services and maintenance performance.The most common service： TPMS,Oil Reset, DPF,SAS,ECU coding and automatic VIN recognition.

ECU programming and bidirectional control

The ECU programming of the Autel IM608 Pro diagnostic tool can be used on most cars, mainly for the vehicle control module to provide adaptive data for repair or replacement of vehicle parts.Reduces the power consumption of the vehicle by providing initialized and recoded values to the vehicle.

Autel IM608 Pro has bi-directional control capabilities that allow access to vehicle specific subsystems for testing, such as doors, lights, and the car's windshield wipers.

KEY PROGRAMMING Functions

Connect the IM608 tablet to the XP400pro Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions.The XP400prp includes 12 ports:

• DC Port – provides 12V DC power supply.
• USB Port – provides data communication and 5V DC power supply.
• DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
•  Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
• IC Card Induction Area
• Vehicle Key Slot – holds the vehicle key.
• Transponder Slot – holds the transponder.
•  Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
•  Mercedes Infrared Key Slot – holds the Mercedes infrared key.
• Status LED – indicates the current operating status.
•  Locker – locks the EEPROM component transponder slot to ensure proper functioning.
• EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM

• NO IP limitation & Used it in any country
• 12-Months Free Software Updates & Warranty
• 30 Days REPLACEMENT or FULL REFUND
• 24-7 OnLine Technical Service

IM608PROKPA Packing List

• 1x Autel MaxiIM IM608 Main Unit
• 1x MaxiFlash JVCI
• 1x XP400 Pro
• 1x Main cable
• 1x USB Cable(2m)
• 1x Mini USB Cable
• 1x AC/DC Adapter (12V)
• 2x Light Fuse  6*30mm
• 1x Cigarette Lighter
• 1x AAC001
• 1x APC101 (USB Cable)
• 1x APB129 (EEPROM A DAPTER)
• 1x APB125 (Mercedes Infrared Collector)
• 1x APB103 (MCU_PLCC52)
• 1x APB104 (MCU_FQFP64)
• 1x APB105 (MCU_FQFP80)
• 1x APB106 (MCU_FQFP112)
• 1x APB107 (MCU_FQFP144)
• 1x APB108 (MCU_FQFP176)
• 1x APB109
• 1x APB110 (MCU_FQFP176)
• 1x APB111 (MCU_FQFP176)
• 1x APB113
• 1x APB114
• 1x APB115
• 1x APB118
• 1x APB119
• 1x APB120
• 1x APB121
• 1x APB122
• 1x APB123
• 1x APB126
• 1x APB127
• 1x APB128
• 1x APA002 (EEPROM Socket)
• 1x APA101 (Signal Cable)
• 1x APA103 (EEPROM Clamp)
• 1x APA107 (ECU Clamp)
• 1x APA108 (ECU Clamp)
• 1x APA109 (MC9S12 Clamp)
• 1x Connect Cable
• 1x Quick Reference Guide
• 2x Packing List
• 1x Carrying Case (634*170*404mm)
• 1x Storage Case (335*250*106mm)
